Fitting evolutionary tracks¶
In this tutorial, we will fit the bolometric luminosity and age of HD 135344 Ab with cooling tracks from an evolutionary model to infer the planetary mass.
[1]:
import os
os.environ['DYLD_LIBRARY_PATH'] = '/Users/tomasstolker/applications/MultiNest/lib'
[2]:
import matplotlib.pyplot as plt
import numpy as np
[3]:
from species import SpeciesInit
from species.data.database import Database
from species.fit.fit_evolution import FitEvolution
from species.read.read_isochrone import ReadIsochrone
from species.plot.plot_mcmc import plot_posterior
from species.plot.plot_evolution import plot_cooling, plot_isochrones
[4]:
SpeciesInit()
=======
species
=======
Version: 0.10.3.dev0
Working folder: /Users/tomasstolker/applications/species/docs/tutorials
Creating species_config.ini... [DONE]
Creating species_database.hdf5... [DONE]
Creating data folder... [DONE]
Configuration settings:
- Database: species_database.hdf5
- Data folder: data
- Magnitude of Vega: 0.03
Multiprocessing: mpi4py installed
Process number 1 out of 1...
[4]:
<species.core.species_init.SpeciesInit at 0x11e39be00>
[5]:
database = Database()
database.add_isochrones('atmo')
Downloading data from 'https://home.strw.leidenuniv.nl/~stolker/species/atmo_evolutionary_tracks.tgz' to file '/Users/tomasstolker/applications/species/docs/tutorials/data/atmo_evolutionary_tracks.tgz'.
------------------
Add isochrone grid
------------------
Evolutionary model: atmo
File name: None
Database tag: None
100%|█████████████████████████████████████| 9.98M/9.98M [00:00<00:00, 4.71GB/s]
Unpacking ATMO isochrones (9.6 MB)...
[DONE]
Adding isochrones: ATMO equilibrium chemistry... [DONE]
Database tag: atmo-ceq
Adding isochrones: ATMO weak non-equilibrium chemistry... [DONE]
Database tag: atmo-neq-weak
Adding isochrones: ATMO strong non-equilibrium chemistry... [DONE]
Database tag: atmo-neq-strong
[6]:
fit_evol = FitEvolution(evolution_model='atmo-ceq',
log_lum=(-3.9, 0.1),
age_prior=(11.9, -5.8, 3.7),
mass_prior=None,
radius_prior=None,
bounds={'age': (1., 50.), 'mass_0': (1.0, 50.)},
interp_method='linear')
----------------------
Fit evolutionary model
----------------------
Evolution model: atmo-ceq
Luminosity log(L/Lsun): (-3.9, 0.1)
Fitting 2 parameters:
- age
- mass_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
Normal priors (mean, sigma):
- Age (Myr): (11.9, -5.8, 3.7)
- Mass (Mjup): [None]
- Radius (Rjup): [None]
[7]:
fit_evol.run_multinest(tag='hd135344ab',
n_live_points=1000,
output='./multinest/')
------------------------------
Nested sampling with MultiNest
------------------------------
Database tag: hd135344ab
Number of live points: 1000
Output folder: ./multinest/
*****************************************************
MultiNest v3.10
Copyright Farhan Feroz & Mike Hobson
Release Jul 2015
no. of live points = 1000
dimensionality = 2
*****************************************************
ln(ev)= -1.7589546819843822 +/- 5.1711112237214710E-002
Total Likelihood Evaluations: 7139
Sampling finished. Exiting MultiNest
Nested sampling global log-evidence: -1.76 +/- 0.05
Nested importance sampling global log-evidence: -1.69 +/- 0.03
Sample with the maximum likelihood:
- Log-likelihood = 1.38
- age = 11.75
- mass_0 = 9.88
Extracting the posteriors of Teff, R, and log(g):
---------------------
Add posterior samples
---------------------
Database tag: hd135344ab
Sampler: multinest
Samples shape: (2750, 5)
ln(Z) = -1.69 +/- 0.03
[8]:

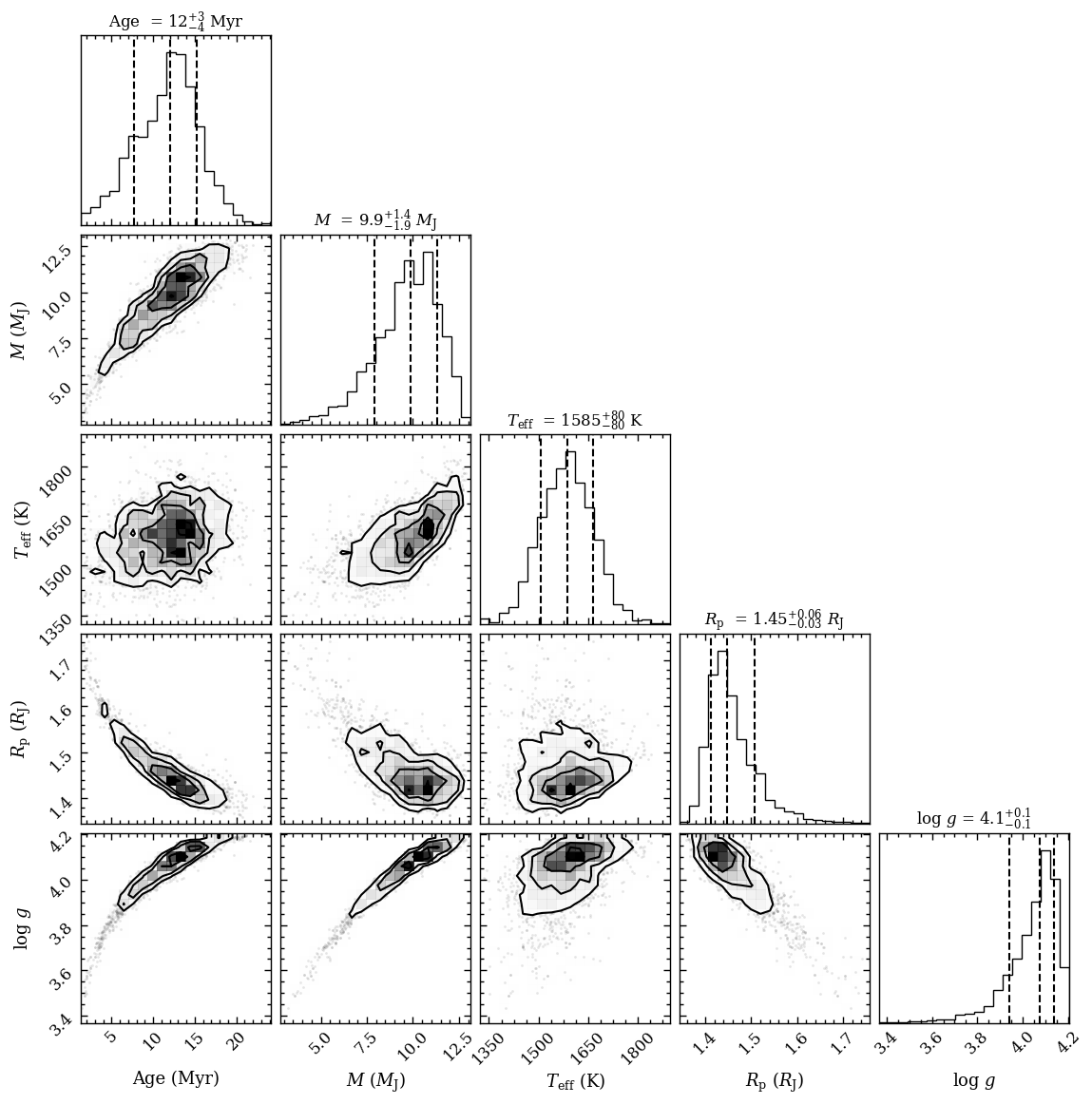

fig = plot_posterior(tag='hd135344ab',
offset=(-0.25, -0.25),
title_fmt=['.0f', '.1f', '.0f', '.2f', '.1f'],
output=None)
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
----------------------------
Plot posterior distributions
----------------------------
Database tag: hd135344ab
Object type: planet
Manual parameters: None
Model type: evolution
Model name: atmo-ceq
Sampler: multinest
Median parameters:
- age = 12.04
- mass_0 = 9.86
- teff_0 = 1585.37
- radius_0 = 1.45
- logg_0 = 4.07
Sample with the maximum likelihood:
- age = 15.20
- mass_0 = 11.07
- teff_0 = 1604.71
- radius_0 = 1.42
- logg_0 = 4.14
Parameters included in corner plot:
- age
- mass
- teff
- radius
- logg
[8]:
best = database.get_probable_sample('hd135344ab')
--------------------------------------
Get sample with the maximum likelihood
--------------------------------------
Database tag: hd135344ab
Parameters:
- age = 11.75
- mass_0 = 9.88
- teff_0 = 1587.66
- radius_0 = 1.45
- logg_0 = 4.07
[9]:
read_iso = ReadIsochrone(tag='atmo-ceq')
best_iso = read_iso.get_isochrone(age=best['age'], masses=np.linspace(0.5, 30., 100))
best_cool = read_iso.get_cooling_track(mass=best['mass_0'], ages=np.linspace(0.5, 30., 100))
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
[11]:

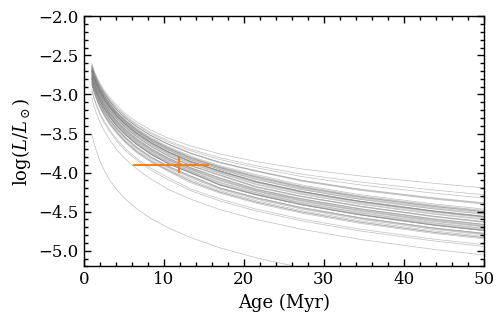

fig, samples_1, indices = plot_cooling(tag='hd135344ab',
n_samples=50,
cooling_param='luminosity',
xlim=(0., 50.),
ylim=(-5.2, -2.),
figsize=(4., 2.5),
output=None)
-------------------
Plot cooling tracks
-------------------
Database tag: hd135344ab
Number of samples: 50
Model parameters: luminosity
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
[12]:

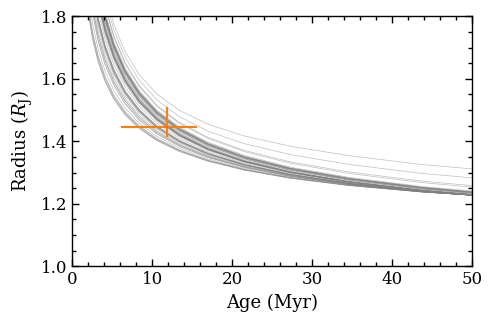

fig, samples_2, indices = plot_cooling(tag='hd135344ab',
n_samples=50,
cooling_param='radius',
xlim=(0., 50.),
ylim=(1.0, 1.8),
figsize=(4., 2.5),
output=None)
-------------------
Plot cooling tracks
-------------------
Database tag: hd135344ab
Number of samples: 50
Model parameters: radius
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
[13]:

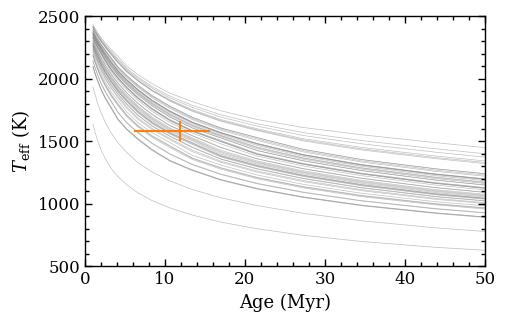

fig, samples_4, indices = plot_cooling(tag='hd135344ab',
n_samples=50,
cooling_param='teff',
xlim=(0., 50.),
ylim=(500.0, 2500.),
figsize=(4., 2.5),
output=None)
-------------------
Plot cooling tracks
-------------------
Database tag: hd135344ab
Number of samples: 50
Model parameters: teff
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
[14]:

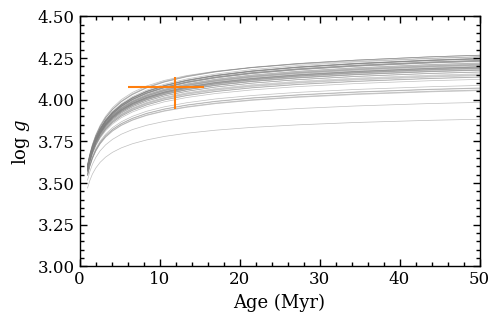

fig, samples_4, indices = plot_cooling(tag='hd135344ab',
n_samples=50,
cooling_param='logg',
xlim=(0., 50.),
ylim=(3.0, 4.5),
figsize=(4., 2.5),
output=None)
-------------------
Plot cooling tracks
-------------------
Database tag: hd135344ab
Number of samples: 50
Model parameters: logg
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
[15]:

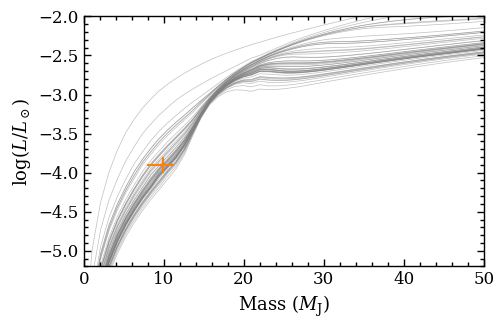

fig, samples_3, indices = plot_isochrones(tag='hd135344ab',
n_samples=50,
xlim=(0., 50.),
ylim=(-5.2, -2.),
figsize=(4., 2.5),
output=None)
---------------
Plot isochrones
---------------
Database tag: hd135344ab
Number of samples: 50
---------------------
Get posterior samples
---------------------
Database tag: hd135344ab
Random samples: None
Samples shape: (2719, 5)
Parameters:
- age
- mass_0
- teff_0
- radius_0
- logg_0
Uniform priors (min, max):
- age = (1.0, 50.0)
- mass_0 = (1.0, 50.0)
-------------------
Read isochrone grid
-------------------
Database tag: atmo-ceq
Create regular grid: False
Setting 'extra_param' attribute: None
Output: None
